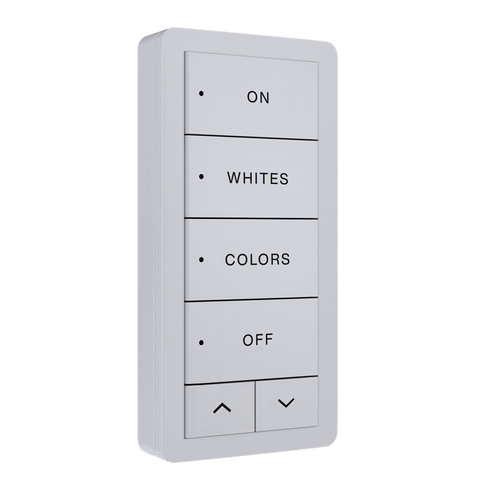

FX Remote Control / 4BRL (4-Button + Raise / Lower)
FX Remote Control / 4BRL (4-Button + Raise / Lower)
FX Remote Control / 4BRL (4-Button + Raise / Lower)
FX Remote Control / 4BRL (4-Button + Raise / Lower)
FX Remote Control / 4BRL (4-Button + Raise / Lower)
FX Remote Control / 4BRL (4-Button + Raise / Lower)
FX Remote Control / 4BRL (4-Button + Raise / Lower)
FX Remote Control / 4BRL (4-Button + Raise / Lower)
FX Remote Control / 4BRL (4-Button + Raise / Lower)
FX Remote Control / 4BRL (4-Button + Raise / Lower)
FX Remote Control / 4BRL (4-Button + Raise / Lower)
FX Remote Control / 4BRL (4-Button + Raise / Lower)
FX Remote Control / 4BRL (4-Button + Raise / Lower)
FX Remote Control / 4BRL (4-Button + Raise / Lower)

FX Remote Control / 4BRL (4-Button + Raise / Lower)

SKU:

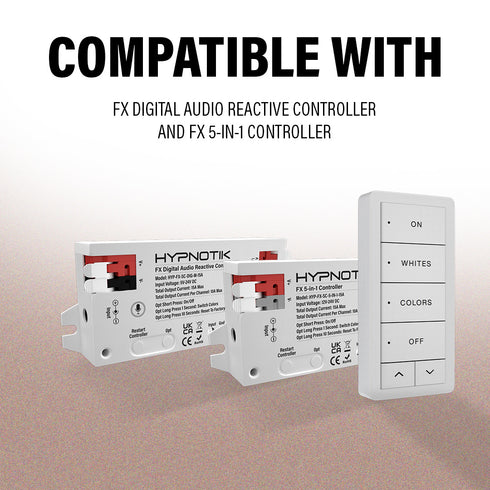

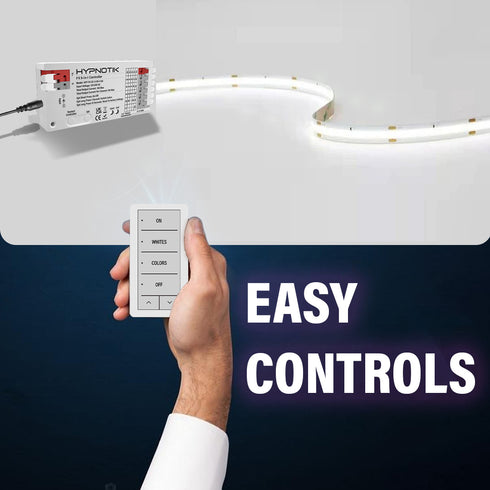

  • REMOTE CONTROL FOR YOUR LINEAR LIGHTING - The 4BRL communicates with your Hypnotik FX Audio Reactive or FX 5-in-1 Linear Lighting Controllers to easily adjust the settings.
  • SIMPLE AND FEATURE-PACKED - The remote control allows you to easily adjust your linear lighting’s power, dimming, color, and white CCT. All while featuring an easy-to-use design.

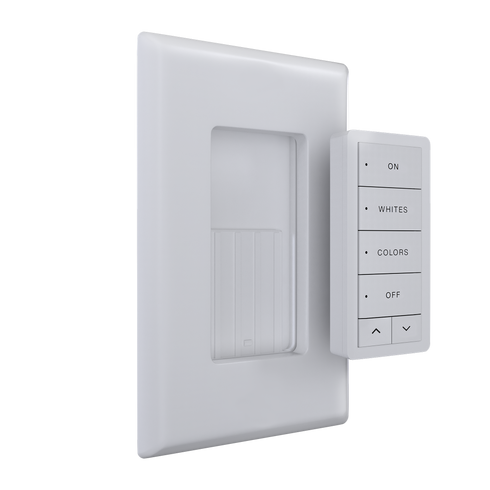

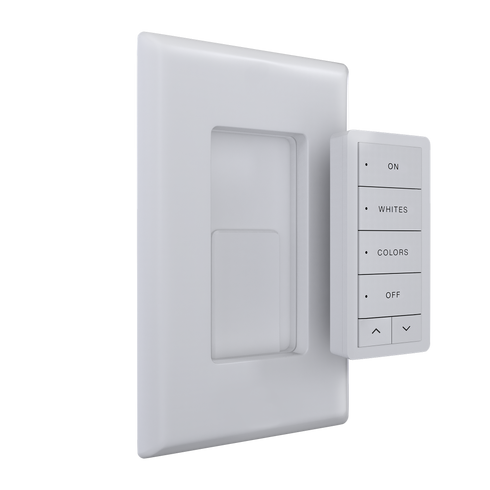

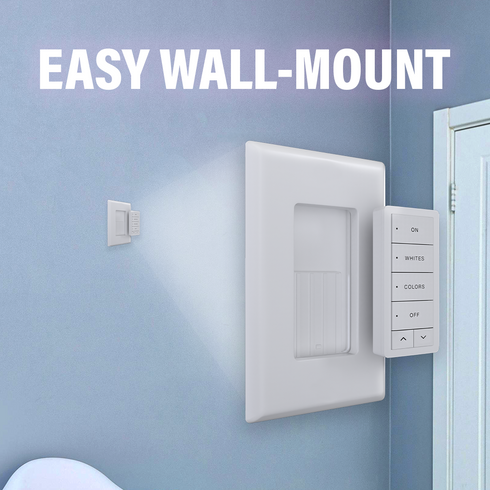

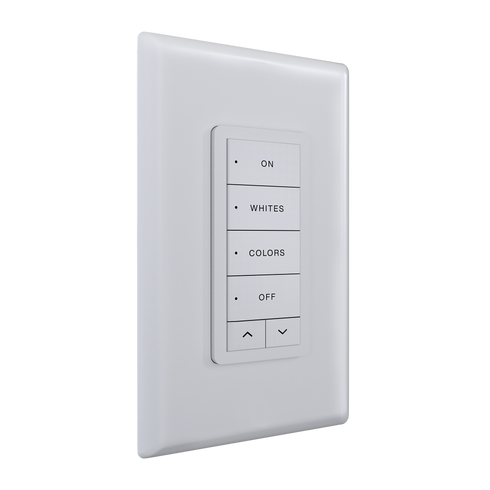

  • EASY WALL MOUNT - Two wall-plates are included. One allows the controller to attach by sliding into the wall-plate, and the other holds onto the controller magnetically for easy removal / attachment.



Model 4BRL (4-Button + Raise / Lower)
SKU 000
Functions ON
OFF
Brightness Increase/Decrease
Color Hue Increase/Decrease
CCT Increase/Decrease
Height 2.60" (66 mm)
Width 1.28" (32.5 mm)
Depth 0.37" (9.35 mm)
Battery Type Rechargeable Coin Cell LIR 2032 3.6V
Battery Life 2Years / Charge* (Averaging 13 clicks a day)
Signal Range > 98' (30 m) Indoors
> 262' (80 m) Outdoors line of sight
Wall Attachment Style Magnetic fit in place
Permanent wall slider attachment
Compatibility Lutron Remote Accessories Compatible
Weather Rating IP20 Indoor Dry
Operating Humidity 0% to 80% non-condensing
Can’t be used inside bathrooms
Operating Temperature 32˚ F to 122˚ F (0˚ C to 50˚ C)
Storage Temperature -4˚ F to 140˚ F (-20˚ C to 60˚ C)
Warranty 7 years

Cut Sheet


View all product specs

Specifications

  • REMOTE CONTROL FOR YOUR LINEAR LIGHTING - The 4BRL communicates with your Hypnotik FX Audio Reactive or FX 5-in-1 Linear Lighting Controllers to easily adjust the settings.
  • SIMPLE AND FEATURE-PACKED - The remote control allows you to easily adjust your linear lighting’s power, dimming, color, and white CCT. All while featuring an easy-to-use design.
  • EASY WALL MOUNT - Two wall-plates are included. One allows the controller to attach by sliding into the wall-plate, and the other holds onto the controller magnetically for easy removal / attachment.



Model 4BRL (4-Button + Raise / Lower)
SKU 000
Functions ON
OFF
Brightness Increase/Decrease
Color Hue Increase/Decrease
CCT Increase/Decrease
Height 2.60" (66 mm)
Width 1.28" (32.5 mm)
Depth 0.37" (9.35 mm)
Battery Type Rechargeable Coin Cell LIR 2032 3.6V
Battery Life 2Years / Charge* (Averaging 13 clicks a day)
Signal Range > 98' (30 m) Indoors
> 262' (80 m) Outdoors line of sight
Wall Attachment Style Magnetic fit in place
Permanent wall slider attachment
Compatibility Lutron Remote Accessories Compatible
Weather Rating IP20 Indoor Dry
Operating Humidity 0% to 80% non-condensing
Can’t be used inside bathrooms
Operating Temperature 32˚ F to 122˚ F (0˚ C to 50˚ C)
Storage Temperature -4˚ F to 140˚ F (-20˚ C to 60˚ C)
Warranty 7 years

Cut Sheet


Cut Sheet

Multicolored Lighting

Hypnotik lights are equipped with RGB LEDs that are capable of creating millions of colors, allowing you to customize all of your lighting to your liking.

Circadian Lighting

Hypnotik lights also include LEDs specially designed for white ambiance lighting, ranging from cool white to warm white, whenever you prefer it.

Adjust Hypnotik lights from ANY of your Control4 devices

Hypnotik lights have been designed from the start to be fully compatible with Control4 enabled homes.

Perfect Dimming

Hypnotik lights offer Color + White Circadian with a full dimming range that allows you to adjust the brightness and tone to suit any mood.
